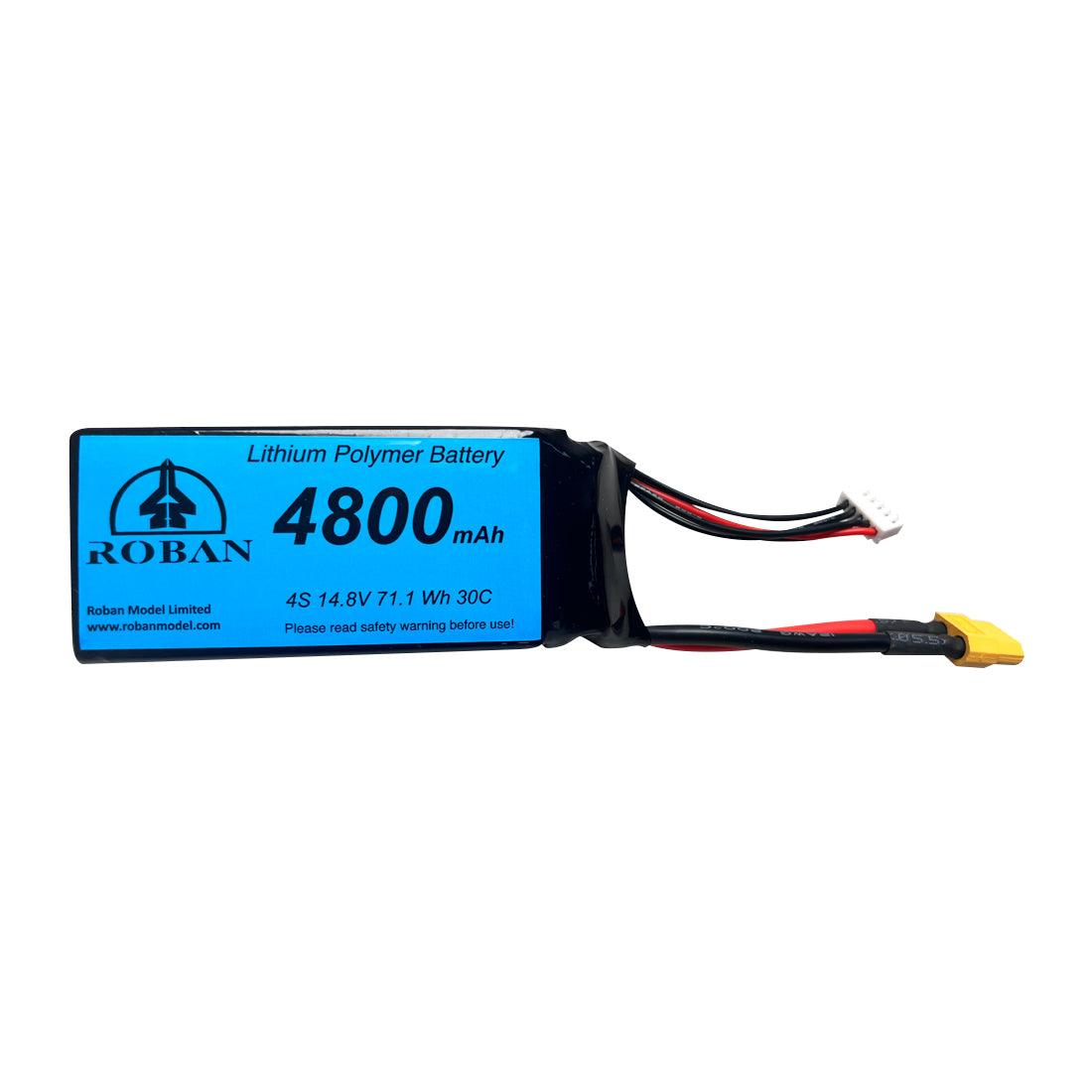

4S 4800mAh LiPo Battery for WOLFBUSH&ROBAN AH-1W 470 Class RC Model
¥11,999
Sale price
¥11,999
Regular price
Shipping calculated at checkout.
🎃 Halloween Limited-Time Sale - TRICK OR TREAT!
・15% OFF All Items
・Coupon Code: HW15
・Limited-Time Offer (10.14-10.31)
【Product Overview】
The 4S 4800mAh lithium polymer (LiPo) battery is specifically designed for the WOLFBUSH&ROBAN AH-1W 470-Class RC model. It is also suitable for RC models such as aircraft and vehicles, offering high capacity and high discharge performance. It features an XT60 yellow plug as the main discharge interface and a JST-XH 5-pin balance charging interface, providing a safe and stable user experience.
【Product Features】
1. Dedicated Design: Fully compatible with the WOLFBUSH&ROBAN AH-1W 470-Class RC model.
2. Lithium Polymer Specifications: Uses a LiPo battery and is suitable for a variety of RC models, including aircraft and vehicles.
3. High-Capacity Design: Rated capacity of 4800mAh (4.8Ah) and energy of 71.1Wh, supporting extended use.
4. Stable Voltage Performance: 4S series configuration, rated voltage of 14.8V, fully charged voltage of approximately 16.8V, and cut-off voltage of approximately 14.0V, ensuring a stable power supply even under high loads.
5. High Discharge Rate: 30C continuous discharge (maximum 144A) and a peak discharge rate of 60C, supporting high-load operation.
6. Charging and Discharging Interfaces: The main discharge interface (XT60 yellow plug) is for high-current discharge, while the balance charging interface (JST-XH 5-pin) is for balanced charging.
7. Blue Design: Highly visible and creates an attractive combination with RC models.
Please be sure to read the safety warnings before use. Strictly follow the safety regulations regarding the charging, discharging, storage, and transportation of lithium polymer batteries.
【Product Specifications】
|
Specification Item
|
Detailed Specifications
|
|
Product Type
|
Battery
|
|
Color
|
Blue
|
|
Battery Type
|
Lithium polymer (LiPo) battery (for aircraft, vehicle, and other RC models)
|
|
Rated Capacity
|
4800mAh (4.8Ah)
|
|
Cell Configuration
|
4S Series
|
|
Rated Voltage
|
14.8V (4S × 3.7V), fully charged voltage of approximately 16.8V, cut-off voltage of approximately 14.0V
|
|
Energy
|
71.1Wh (14.8V × 4.8Ah = 71.04Wh, displayed as 71.1Wh)
|
|
Discharge Rate
|
30C continuous discharge (144A), peak discharge rate of 60C
|
|
Interface
|
Main discharge interface: XT60 yellow plug; balance charging interface: JST-XH 5-pin
|
|
Product Weight
|
250g
|
|
Package Weight
|
350g
|
|
Product Dimensions
|
10 x 6 x 5cm
|
|
Package Dimensions
|
12 x 8 x 8cm
|
|
Packaging Method
|
Box
|
|
Target Age
|
16 years and older
|
